Hanriot HD.7
1918
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / France / Hanriot

Hanriot HD.7

Designed as a potential successor for the SPAD S.XIII, the HD.7 single-seat fighter employed wings and tail surfaces essentially similar to those of the two-seat HD.3. Flown for the first time in the summer of 1918, the HD.7 was powered by a water-cooled Hispano-Suiza 8Fb eight-cylinder engine of 300hp and mounted an armament of two 7.7mm synchronised Vickers machine guns. The performance of the HD.7 proved good, but marginally inferior to that of its principal competitor for production orders, the Nieuport 29. With selection of the latter for series manufacture, further development of the HD.7 was discontinued.

3-View

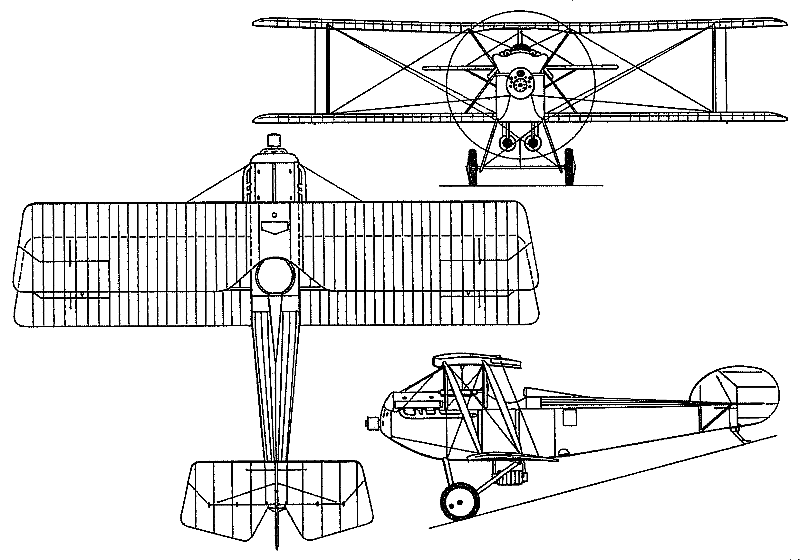

Hanriot HD.7A three-view drawing (800 x 560)


Specification
 WEIGHTS
    Take-off weight1900 kg4189 lb
    Empty weight1230 kg2712 lb
 DIMENSIONS
    Wingspan9.80 m32 ft 2 in
    Length7.20 m24 ft 7 in
    Height3.00 m10 ft 10 in
    Wing area28.00 m2301.39 sq ft
 PERFORMANCE
    Max. speed218 km/h135 mph
    Range900 km559 miles
