Hansa-Brandenburg W.11
1917
Back to the Virtual Aircraft Museum
  NAVAL FIGHTERVirtual Aircraft Museum / Germany / Hansa-Brandenburg

Hansa-Brandenburg W.11

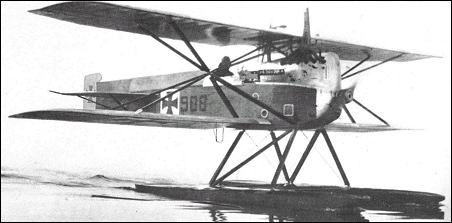

A heavier and more powerful derivative of the KDW, the W.11 single-seat twin-float fighter biplane was powered by a 220hp Benz Bz IVa water-cooled engine and retained the "star" interplane bracing arrangement of its predecessor. Armament consisted of two synchronised LMG 08/15 machine guns, and two prototypes were completed during February-March 1917. No series production was undertaken.


Specification
 WEIGHTS
    Take-off weight1233 kg2718 lb
    Empty weight935 kg2061 lb
 DIMENSIONS
    Wingspan10.10 m33 ft 2 in
    Length8.10 m27 ft 7 in
    Height3.32 m11 ft 11 in
    Wing area31.42 m2338.20 sq ft
 PERFORMANCE
    Max. speed176 km/h109 mph
    Range350 km217 miles
