Hansa-Brandenburg W.18

The W.18 single-seat fighter flying boat was, like the CC that it supplanted, intended primarily for the Austro- Hungarian Navy. The prototype was flown early in 1917 with a 150hp Benz Bz III six-cylinder water-cooled engine, and production with a 200hp Hiero engine was undertaken on behalf of the Austro-Hungarian Navy, a total of 47 being delivered between September 1917 and May 1918. Armament normally comprised two fixed forward-firing 8mm Schwarzlose machine guns, and the W.18 was employed for both station defence and fighter patrol tasks. One Benz-engined example was delivered to the German Navy in December 1917.

3-View

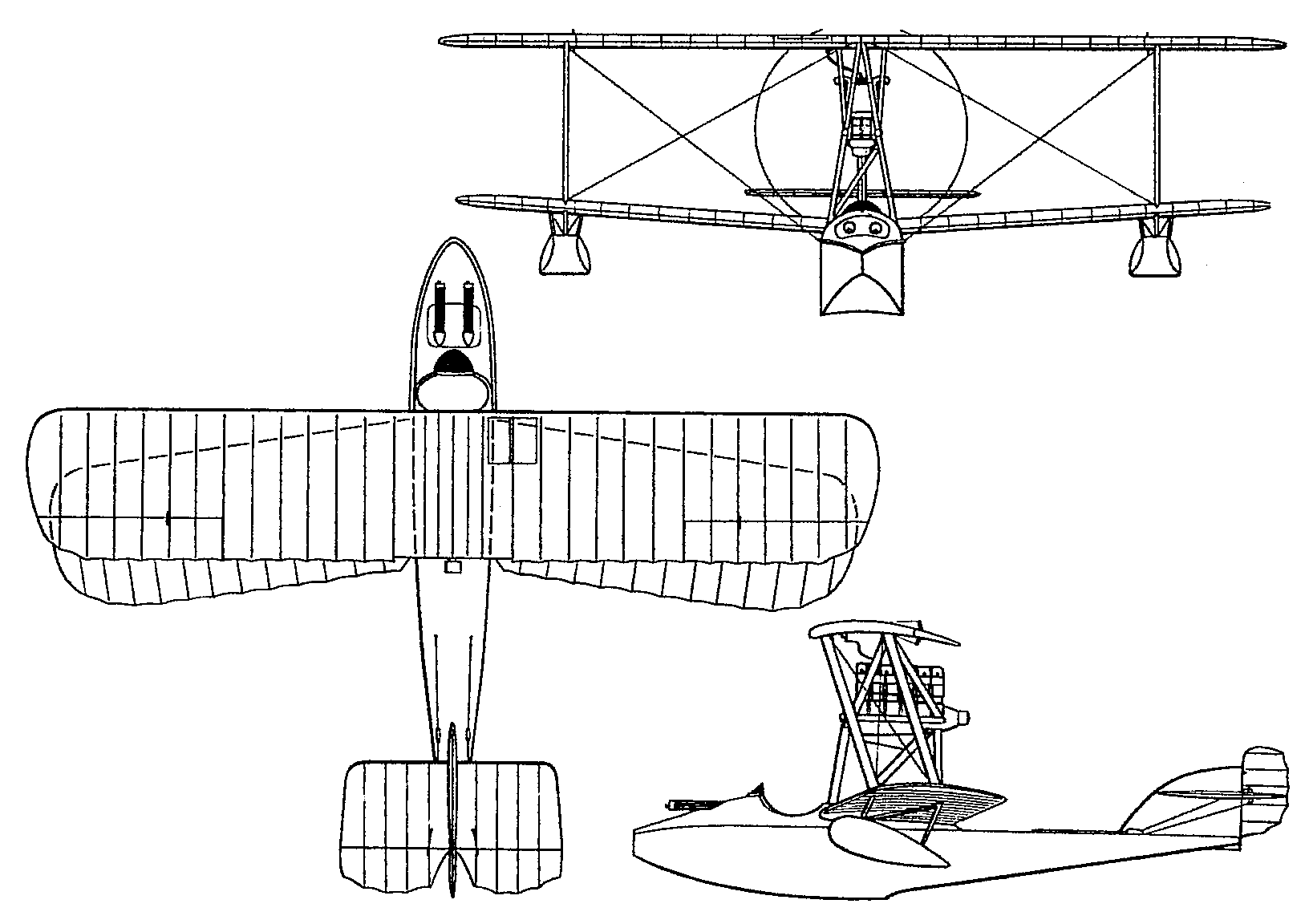

Hansa-Brandenburg W.18A three-view drawing (1632 x 1152)


Specification
 WEIGHTS
    Take-off weight1145 kg2524 lb
    Empty weight875 kg1929 lb
 DIMENSIONS
    Wingspan10.70 m35 ft 1 in
    Length8.15 m27 ft 9 in
    Height3.45 m11 ft 4 in
    Wing area34.38 m2370.06 sq ft
 PERFORMANCE
    Max. speed170 km/h106 mph

Comments
Anthony Wise, 09.07.2015

Are there any draws/blue prints/plans for this aircraft still around? I am interested in making flying replica. Thanks
