DFS 194

Predecessor of the Me-163. First flown in August 1940. One built.

3-View

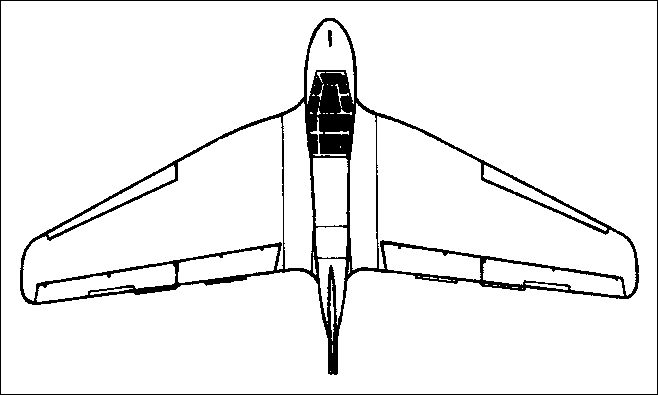

DFS 194A three-view drawing (658 x 395)

Specification
 MODELDFS 194
 CREW1
 ENGINE1 x Walter R1-203, 300kg
 WEIGHTS
  Take-off weight2100 kg4630 lb
 DIMENSIONS
  Wingspan10.4 m34 ft 1 in
  Length6.4 m21 ft 0 in
  Wing area18 m2193.75 sq ft
 PERFORMANCE
  Max. speed550 km/h342 mph

Comments
Fardad Izadi, e-mail, 01.05.2015 09:20

Hi! Carlos ,
the colour of the German's experimental gliders & specials aircraft- DFS before the 1940 were generally ,sand yellow or dark yellow. Good Luke!

reply

seth, e-mail, 02.01.2014 21:32

carlos the color is tan

reply

goutou, 20.06.2011 06:19

the first plane that served as a high speed test plane, the B model was the operational version.

reply

Carlos, e-mail, 27.05.2011 23:29

Sorry, no speak English. What is the colour of the DFS-194? Thanks

reply

Alfredo Rubio, e-mail, 05.07.2009 22:39

The 3 view that you put in this site is OK, but the picture no, the plane in the picture was the Me-163 A, the first plane that served as a high speed test plane, the B model was the operational version.
