Junkers Ju-49
1931 		Back to the Virtual Aircraft Museum
  HIGH-ALTITUDE RESEARCH PLANEVirtual Aircraft Museum / Germany / Junkers

Junkers Ju-49

First flew in 1931. In 1933 Ju-49 reached an altitude of 9300m and in 1935 an altitude of 13000m.

3-View

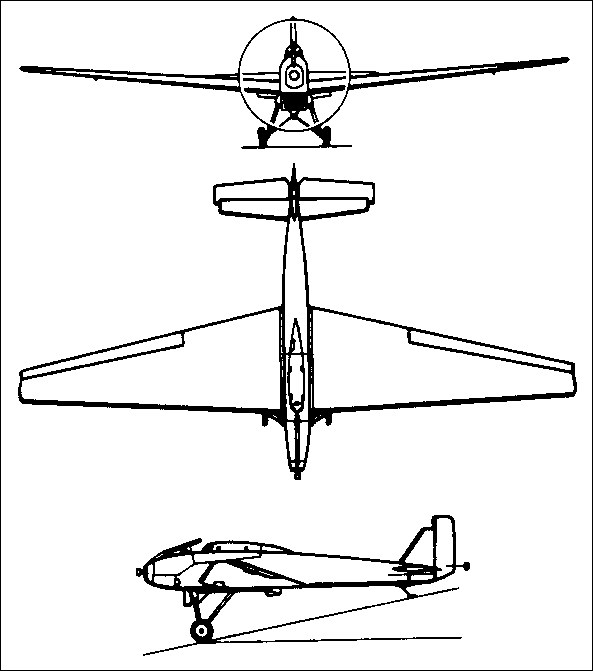

Junkers Ju-49A three-view drawing (593 x 671)


Specification
 MODELJu-49
 CREW2
 ENGINE1 x Ju L-88a, 590kW
 WEIGHTS
    Take-off weight4250 kg9370 lb
 DIMENSIONS
    Wingspan28.3 m93 ft 10 in
    Length17.2 m56 ft 5 in
    Height4.8 m16 ft 9 in
 PERFORMANCE
    Max. speed146 km/h91 mph
    Ceiling13000 m42650 ft
