Macchi M.39
1926
Back to the Virtual Aircraft Museum
  RACING AIRCRAFTVirtual Aircraft Museum / Italy / Macchi

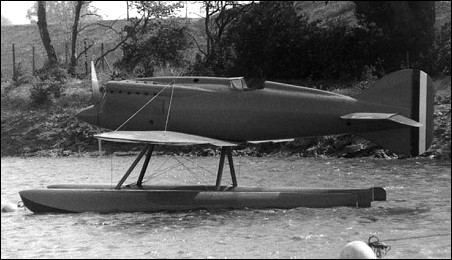

Macchi M.39

There is no text information for this aircraft at the moment.


Specification
 MODELM.39
 CREW1
 ENGINE1 x 600hp Fiat AS-2
 WEIGHTS
    Take-off weight1572 kg3466 lb
    Empty weight1257 kg2771 lb
 DIMENSIONS
    Wingspan9.26 m30 ft 5 in
    Length6.73 m22 ft 1 in
    Height2.97 m10 ft 9 in
 PERFORMANCE
    Max. speed439 km/h273 mph

Comments
Barry, 05.09.2016

Designed by Mario Castoldi for the 1926 Schneider trophy race, there were five M.39's built three racers plus two trainers. There was also one static airframe. The specification above is for the trainer version the racer having an 800 h.p. Fiat A.S.2 engine.
On 17th November 1926 Major Mario Bernadini won the Scheider Trophy at Hampton Roads Virginia at a speed of 246.497 mph. Three days later at thesame venue he claimed the absolute world air speed record of 258.874 mph. Castoldi based the later M.52 on the M.39.

carlo, 27.10.2013

il pilota Silvio Borra perchŤ precipitÚ nel lago di Varese cn un M 39?
