Tupolev ANT-14 Pravda

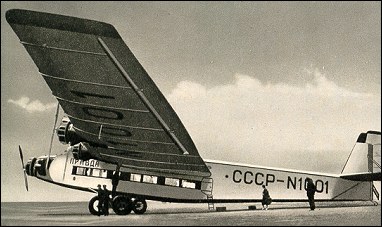

The one-off ANT-14 Pravda, which served as flagship of the propaganda squadron, was an enlargement of the ANT-9, powered by five 358kW Jupiter radials and capable of carrying a crew of five and 36 passengers at a maximum 236km/h. It spanned 40.40m as against the 23.80m of the ANT-9. Pravda carried over 40,000 passengers before being grounded in 1941.

3-View

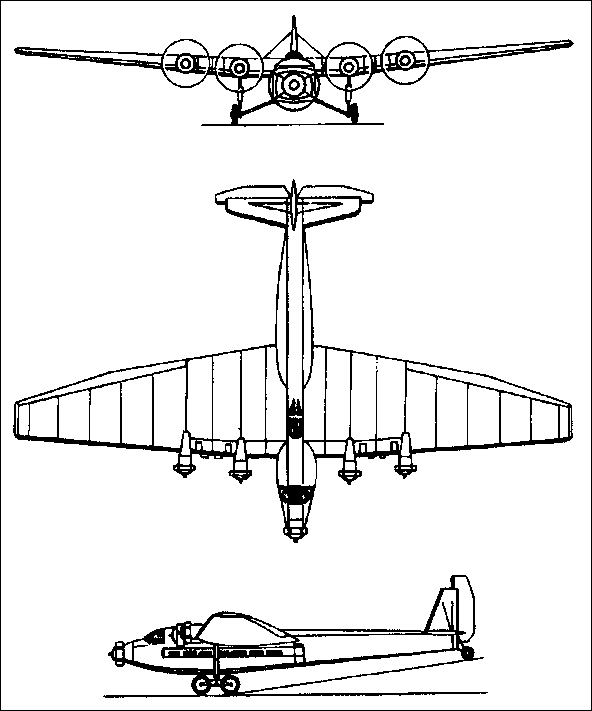

Tupolev ANT-14 PravdaA three-view drawing (592 x 711)


Specification
 MODELANT-14
 CREW4-5
 PASSENGERS36
 ENGINE5 x Gnome et Rhone "Jupiter" 9AKK,
 WEIGHTS
    Take-off weight17146 kg37801 lb
    Empty weight10650 kg23479 lb
 DIMENSIONS
    Wingspan40.4 m133 ft 7 in
    Length26.5 m87 ft 11 in
    Height5.4 m18 ft 9 in
    Wing area240.0 m22583.34 sq ft
 PERFORMANCE
    Max. speed236 km/h147 mph
    Cruise speed195 km/h121 mph
    Ceiling4220 m13850 ft
    Range1200 km746 miles

Comments
Barry, 29.02.2016

Translation of "Pravda" truth as if!
