Curtiss Hawk III & IV
1935
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / USA / Curtiss

Hawk III

The export version of the BF2C-1, the Hawk III, differed from the US Navy fighter-bomber in reverting to the wooden wing structure of the F11C-2 (spruce beams with plywood webs and spruce ribs) and in having a Wright SR-1820F-53 Cyclone offering 785hp for take-off and 745hp at 2925m. Gun armament comprised two synchronised 7.62mm weapons. The first export of the Hawk III was a single example to Turkey delivered in April 1935, supply of 24 to Thailand following from August 1935. In March 1936, the first of a total of 102 Hawk Ills was delivered to China, 90 of these being assembled by the Central Aircraft Manufacturing Company (CAMCO) at Hangchow. One other purchaser of the Hawk III was Argentina, which took delivery of 10 from May 1936. The last-mentioned country also purchased the sole example of the Hawk IV in July 1936, this using a Hawk III airframe with a full sliding cockpit canopy, carburettor heating and an exhaust collector ring for the SR-1820F-56 Cyclone, which delivered its maximum 745hp at 3810m. The Hawk IV attained 399km/h at 3810m and 390km/h at 5000m.

Hawk IV


Specification
 MODELHawk III
 WEIGHTS
    Take-off weight1958 kg4317 lb
    Empty weight1457 kg3212 lb
 DIMENSIONS
    Wingspan9.60 m32 ft 6 in
    Length7.14 m23 ft 5 in
    Height2.98 m10 ft 9 in
    Wing area24.34 m2261.99 sq ft
 PERFORMANCE
    Max. speed325 km/h202 mph
    Range925 km575 miles

Comments
Klaatu83, 03.03.2014

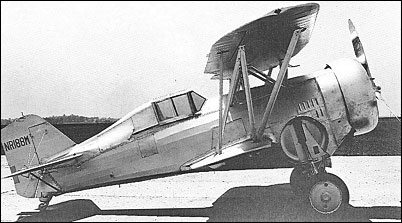

The aircraft in the lower photo is the sole Hawk IV prototype, which was later sold to Argentine Air Force.

Brad Hensley, 25.03.2011

The only known Hawk III left is in the Royal Thai Air Force Museum in Bangkok
