Strategic high-altitude reconnaissance aircraft based on B-57 bomber. The first prototype flew in 1966.

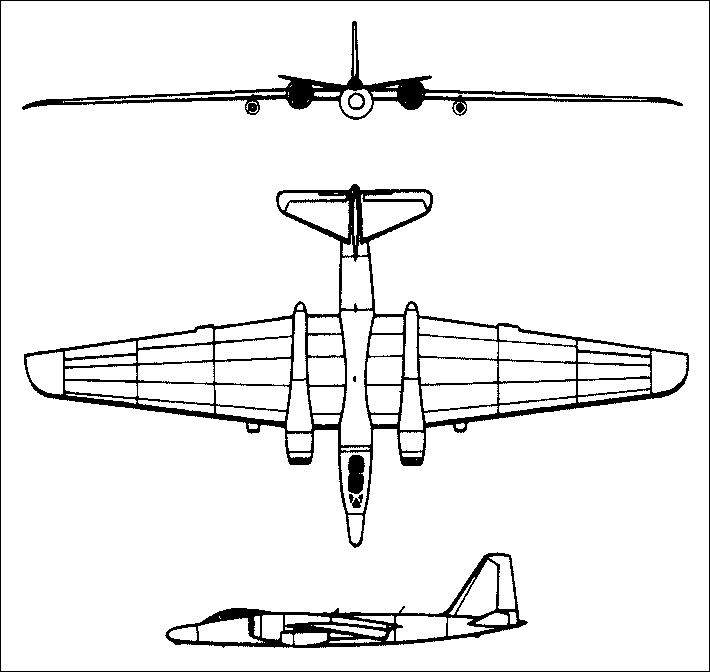

 | A three-view drawing (710 x 672) |
| MODEL | RB-57F |
| CREW | 2 |
| ENGINE | 2 x P & W TF-33-P-11 turbojets, 80.1kN, 2 x P & W J60-P-9 booster turbojets, 14.7kN |
| WEIGHTS |
| Take-off weight | 20360 kg | 44886 lb |
| Empty weight | 13600 kg | 29983 lb |
| DIMENSIONS |
| Wingspan | 37.3 m | 122 ft 5 in |
| Length | 21.0 m | 68 ft 11 in |
| Height | 5.8 m | 19 ft 0 in |
| PERFORMANCE |
| Max. speed | 880 km/h | 547 mph |
| Ceiling | 25000 m | 82000 ft |
| Range w/max.fuel | 6440 km | 4002 miles |
| Bob Svoboda, robert.svoboda(@)luke.af.mil, 19.11.2009 I believe the first tail number was 286. I was stationed at Eielson AFB,AK Det 5/9WRW. | | HASSAN, HASSANLOVE007(@)GMAIL.COM, 30.10.2009 I NEED PAKISTAN AIR FORCE RB-57F IMAGE OR INFORMATION | | Steve Baker, sbaker(@)jimoconnordesign.com, 20.08.2009 I was also assigned to the 58th WRS at Kirtland from 1965 to 1968. I think you are exactly right about the tail numbers. As I remember it was 287. I worked in the auto-pilot shop. We probably went TDY together to either Panama, Alaska, Argentina, or Samoa. Ring a bell with anyone? sb | | Ken Swick, kswick4915(@)sbcglobal.net, 19.06.2009 The last one flying is operated by NASA at Ellington Field Houston, Texas. I know the sound as the RB-57 before I see it. I live 1 mile from the runway and get to watch this (and many other types) fly diretly overhead on final. What a great place to live! | | Stan Martin, stan.martin(@)mkcorp.com, 28.12.2006 I was assigned to the 58th WRS, Kirtland AFB when the first General Dynamics B57's were delivered to us. I can't remeber the lowest tail number. I believe it was 287 or 288. I served from 1962 to 1966. I worked on the air sampling equipment. |
|
