Yakovlev Yak-112

1993

Back to the Virtual Aircraft Museum
  PRIMARY TRAINERVirtual Aircraft Museum / USSR / Russia / Yakovlev

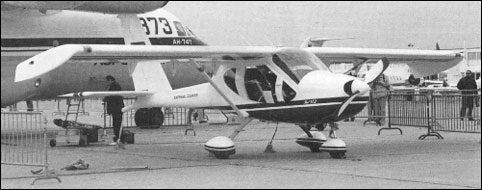

Yakovlev Yak-112

The last aircraft design competition in the Soviet Union was for a two-seat primary trainer for DOSAAF and aero clubs. Yakovlev of course competed. The Yak-112 was the outright winner, but it has subsequently been developed as a multi-role four-seater.

Unlike so many konversiya aircraft, the Yak-112 seems assured of commercial success. A model was displayed in 1990, a mock-up in 1991 and the first flight was made on 20 October 1992 (a recent Russian article gives the date as 27 May 1993). Yakovlev claim that by mid-1993 orders totalled 500, including large numbers from India and South American countries. Production is in hand at two plants, Smolensk and Irkutsk.

Bill Gunston & Yefim Gordon "Yakovlev Aircraft since 1924", 1997

3-View

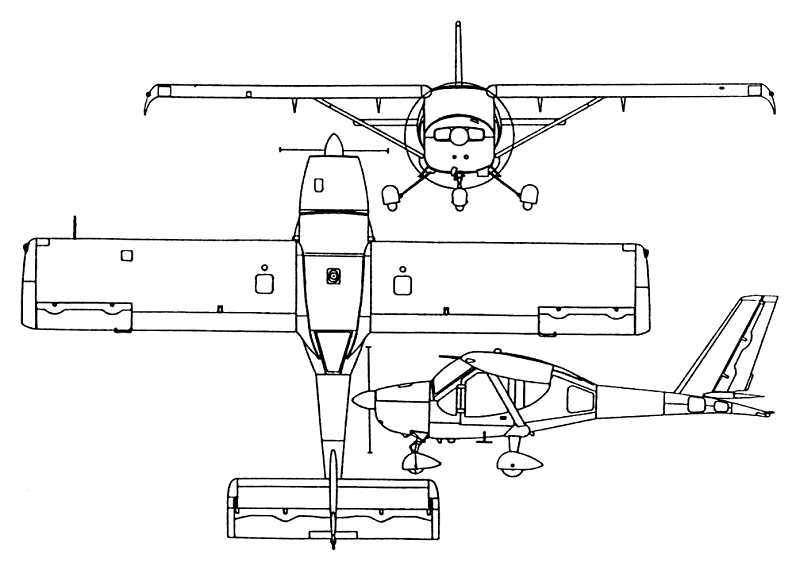

Yakovlev Yak-112A three-view drawing (800 x 570)

Specification
 WEIGHTS
  Take-off weight1290 kg2844 lb
 DIMENSIONS
  Wingspan10.25 m34 ft 8 in
  Length6.96 m23 ft 10 in
  Wing area16.96 m2182.56 sq ft
 PERFORMANCE
  Cruise speed210 km/h130 mph
  Ceiling4000 m13100 ft
  Range w/max.fuel1200 km746 miles
  Range w/max payload850 km528 miles

Comments
Mike Green, e-mail, 22.08.2009 08:28

There are so many of these small Russian and European aircraft that would have been welcome in the North American market. They were (and are) sturdy and reliable planes. This one in particular is a great little design with very good range.
