Canadair CL-28 Argus

Long-range anti-submarine patrol aircraft developed from Bristol "Britannia" turboprop airliner. The first prototype flew on March 27, 1957. 33 built. Retired in 1981, replaced by P-3 "Orion".

3-View

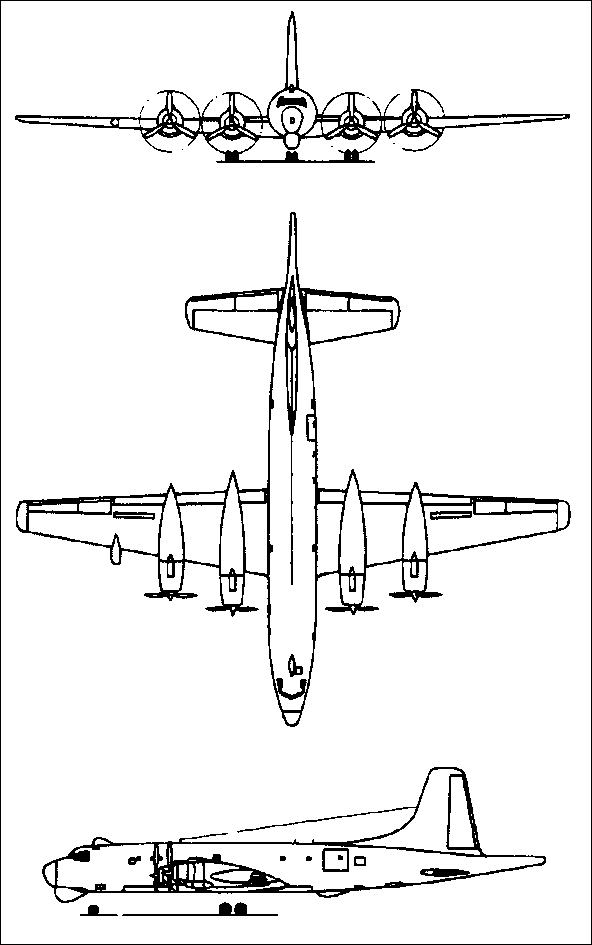

Canadair CL-28 ArgusA three-view drawing (592 x 945)


Specification
 MODELCL-28 "Argus"
 CREW15
 ENGINE4 x Wright R-3350-EA1 Cyclone, 2535kW
 WEIGHTS
    Take-off weight71214 kg157001 lb
    Empty weight36741 kg81000 lb
 DIMENSIONS
    Wingspan43.37 m142 ft 3 in
    Length39.26 m129 ft 10 in
    Height11.79 m39 ft 8 in
    Wing area192.77 m22074.96 sq ft
 PERFORMANCE
    Max. speed507 km/h315 mph
    Ceiling7620 m25000 ft
    Range9495 km5900 miles
 ARMAMENT3629kg of weapons inside the fuselage and 1724kg on external hardpoints

Comments
Jean Lavoie, jlavoie(@)groupekanak.com, 15.11.2009

The picture depicting 710 is an Argus mark 1 of the first generation, 710 is actually the first Argus and prototype built by Canadair in Montreal and is equipt , like all 13 mark 1, with the american APS-20 search radar wich has the big antenna radome, all others Argus (22)where mark 2 with british ASV-21 search radar with the smaller radome. The Wright engines where fitted for low specific fuel consumption (not for cost saving), on the 31 may 1974, 711 a 407 Squadron Argus mark 1 from Comox flew 31.1 hours straight with no external or added fuel tank

Barry, 04.11.2009

I agree it is a CL28 Argus. It is the later model with the larger radome that actaully gave a better performance than the earlier model with a smaller radome.
However I do not agree that piston engines gave the aircraft a better performance. The Proteus turbo prop of the original Brittania would have given a far greater endurance and range. I think more to the point the Cyclone was more of a low cost option.

Ken Wright, g7k(@)candw.ky, 07.09.2009

The photo at the top of the page is definately an Argus. I flew over 2000 hours in the Argus as a Radio Officer.
Piston engins were specified as they gave a longer range than turbo props and gave us a longer loiter time mid-Atlantic. The Argus had the longest range of any aircraft until Rutan's arond the world flight.

Reed, 23.08.2009

The picture you have is not of an argus!

3VI, landmania(@)libero.it, 25.08.2007

Photos inverted. This is the CL-44, and the one in CL-44 page is a CL-28...

3VI, landmania(@)libero.it, 25.08.2007

Why Canadair replaced turboprops with piston engines? I think turboprop is the best way to push a patrol aircraft longer. It's a nonsense...

Marc Landry, marcland(@)rogers.com, 27.01.2007

I am a former master navigator on the "Argus"; flew with RCAF 404 MP Squadron 1963-66.
I would very much like to acquire a dest model of the Canadair Argus.
Canyou inform me how to go about this?

Do you have any comments about this aircraft ?
