General Dynamics / McDonnell Douglas Avenger II

1991

Back to the Virtual Aircraft Museum
  BOMBERVirtual Aircraft Museum / USA / General Dynamics

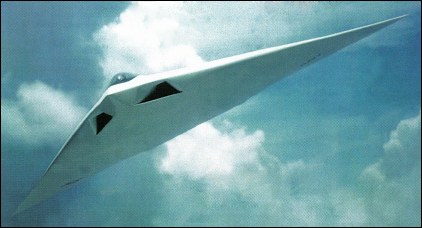

General Dynamics / McDonnell Douglas Avenger II

General Dynamics and McDonnell Douglas appropriated the name of an earlier Grumman product for their proposed stealth replacement for the A-6 Intruder all-weather attack bomber. Sadly, the Avenger II was not destined to be a classic like the wartime TBF. Intended to use more sophisticated stealth techniques than the USAF's F-117A Nighthawk, the A-12 was a trapezoidal shape with smooth, rather than faceted, surfaces for scattering radar beams. It would have carried more weapons than the F-117 and had an air-to-air capability. Developed largely in secrecy and without proper oversight, the cost rose to a reported $100 million per aircraft. The Avenger II was cancelled by Defense Secretary Dick Cheney in January 1991, just before the Gulf War and a few months before the prototype's expected first flight. Four senior naval officers were forced into retirement over the fiasco. The Navy eventually wound up with the Super Hornet, in many ways a less capable aircraft than the Intruder, which was retired in 1996 without an immediate replacement. The Navy sued the contractors and the contractors sued back for more. The issue has been in and out of the courts ever since.

Few images of the A-12 other than artists' impressions and mock-up photos ever emerged, and more than $2 billion was spent for little tangible result.

FACTS AND FIGURES

© The use of composite materials did not bring the expected weight savings and it is thought the A-12 was 30% over its desired weight by the time it was cancelled.

© The radar would have been a sophisticated Inverse Synthetic Aperture system, but development problems with this contributed to the huge cost overruns.

© The shape of the A-12 was more akin to that of the B-2 than the F-117. It did lead to the nickname of 'Flying Dorito', however.

Specification
 CREW2
 ENGINE2 x 5900kg General Electric F412-400 turbofan engines
 DIMENSIONS
  Wingspan21.41 m70 ft 3 in
  Length11.35 m37 ft 3 in
  Height3.44 m11 ft 3 in
 PERFORMANCE
  Max. speed933 km/h580 mph
