Northrop YB-49

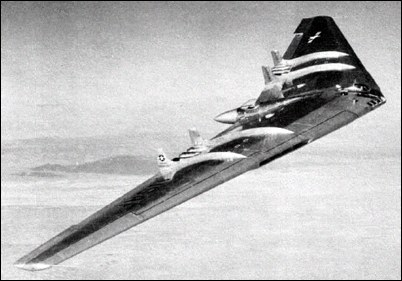

The end of World War II, together with orders placed for the competing Convair B-36, sealed the fate of the piston-engine B-35, but foreseeing this possibility Northrop received approval from the USAF to modify two of the YB-35s to jet power. Redesignated YB-49, the first of these flew on 21 October 1947 with eight 1814kg thrust Allison J35 engines; the second had six 2540kg thrust Allison engines, four buried in the wings and two in underslung pods. Many complimentary reports on the YB-49 were filed by air force officers, and the service was convinced of the advantages of the all-wing configuration, but in June 1948 the second YB-49 was destroyed with the loss of its five man crew in a crash attributed to structural failure.

In spite of this the US Air Force ordered 30 modified RB-49A aircraft, one of which was to be built by Northrop and, because of that company's other commitments, 29 by Consolidated Vultee, but this order was later cancelled to provide extra funds for the B-36. The YB-35 programme continued for a while with various test airframes, but in October 1949 the whole programme was cancelled and the aircraft were scrapped. Sole survivor was the six-jet YB-49A, but just four years later this was broken up.

FACTS AND FIGURES

© One theory for the YB-49 crash was that the design was not adjusted to counter the stability lost when the propellers were omitted.

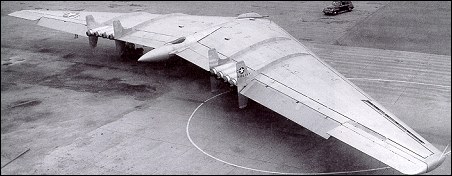

© The YB-49 was powered by six jets. The last model, the YRB-49, had two of the jets in auxiliary pods under the wings.

© Curing the stability problems with the flying wings was beyond the technology of the time. Computers and fly-by-wire systems keep the modern B-2 under control.

3-View

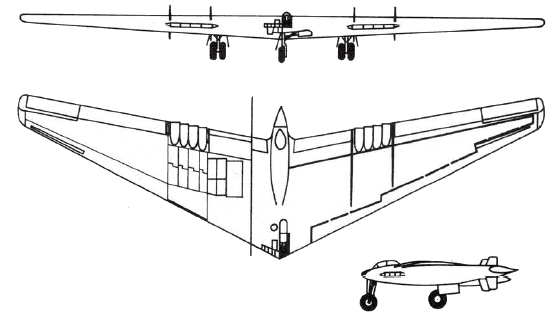

Northrop YB-49A three-view drawing (556 x 319)

Specification
 CREW6
 ENGINE8 x Allison J35-A-15, 1800kg
 WEIGHTS
  Take-off weight96800 kg213409 lb
 DIMENSIONS
  Wingspan52.4 m172 ft 11 in
  Length16.2 m53 ft 2 in
  Wing area372 m24004.17 sq ft
 PERFORMANCE
  Max. speed930 km/h578 mph
  Range8700 km5406 miles

Northrop YB-49
